Worksheet Overview

The following provides information about Worksheets and how they should be used.

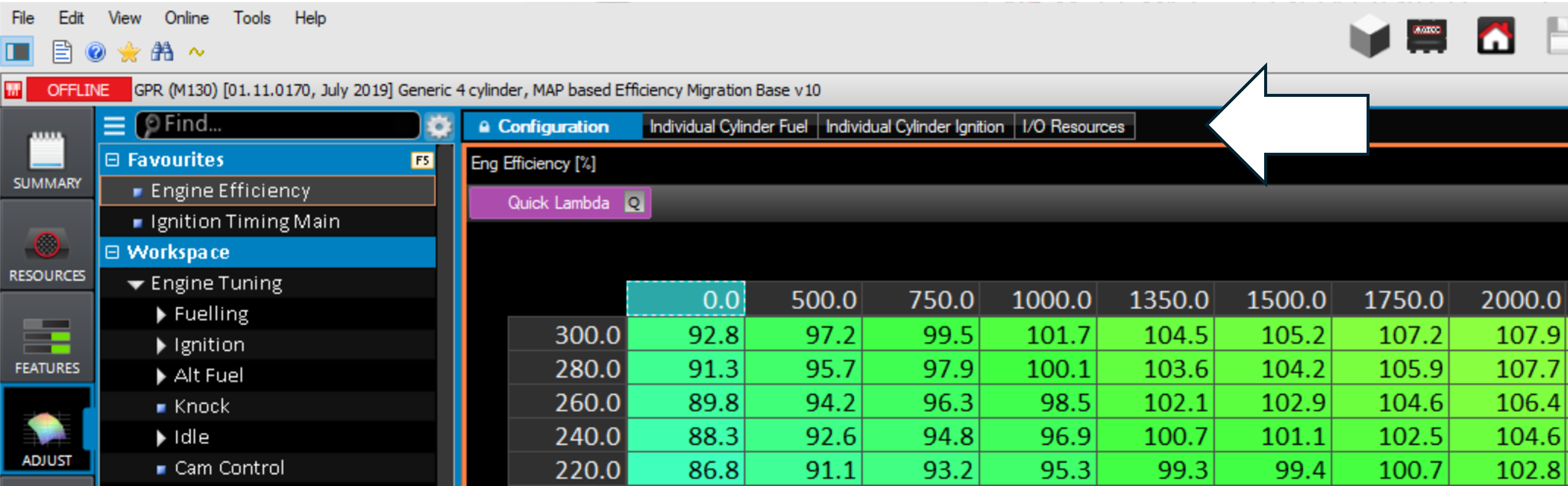

The Adjust view contains a number of Worksheets, these Worksheets are used for configuration and tuning. The Worksheets are located within the Adjust view above the Adjust Items Editor.

There are two types of Worksheet:

The Configuration Worksheet this worksheet is locked and appears in all workspaces.
User definable Worksheets e.g. most Workspaces come with pre configured Worksheets designed for a defined task.

Creating/editing a Worksheet

A new Worksheet is created blank. The user can then populate the Worksheet with a variety of components that can be placed anywhere on the Worksheet to create a customised layout that suits the application. The components themselves can be moved, resized and customised so that they are appropriate to the Worksheet.

Every component has a unique set of properties specific to that component type. These properties determine how the component looks and behaves. The property values are set within M1 Tune for tuning of the M1 ECU.

Note: The same component type can be used on multiple Worksheets. However, the property values are specific to that one component instance; they are not shared with other instances of that component type in other places.

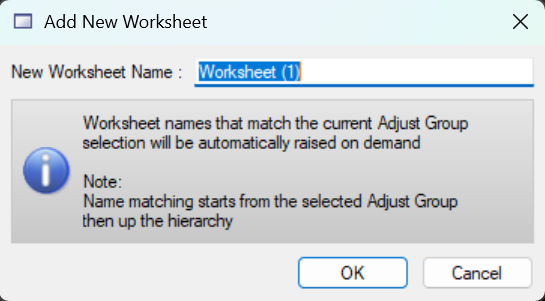

To create a new Worksheet, right click in the Worksheet banner Or click the

button. Name the Worksheet.

Note: Right click on an existing Worksheet to edit.

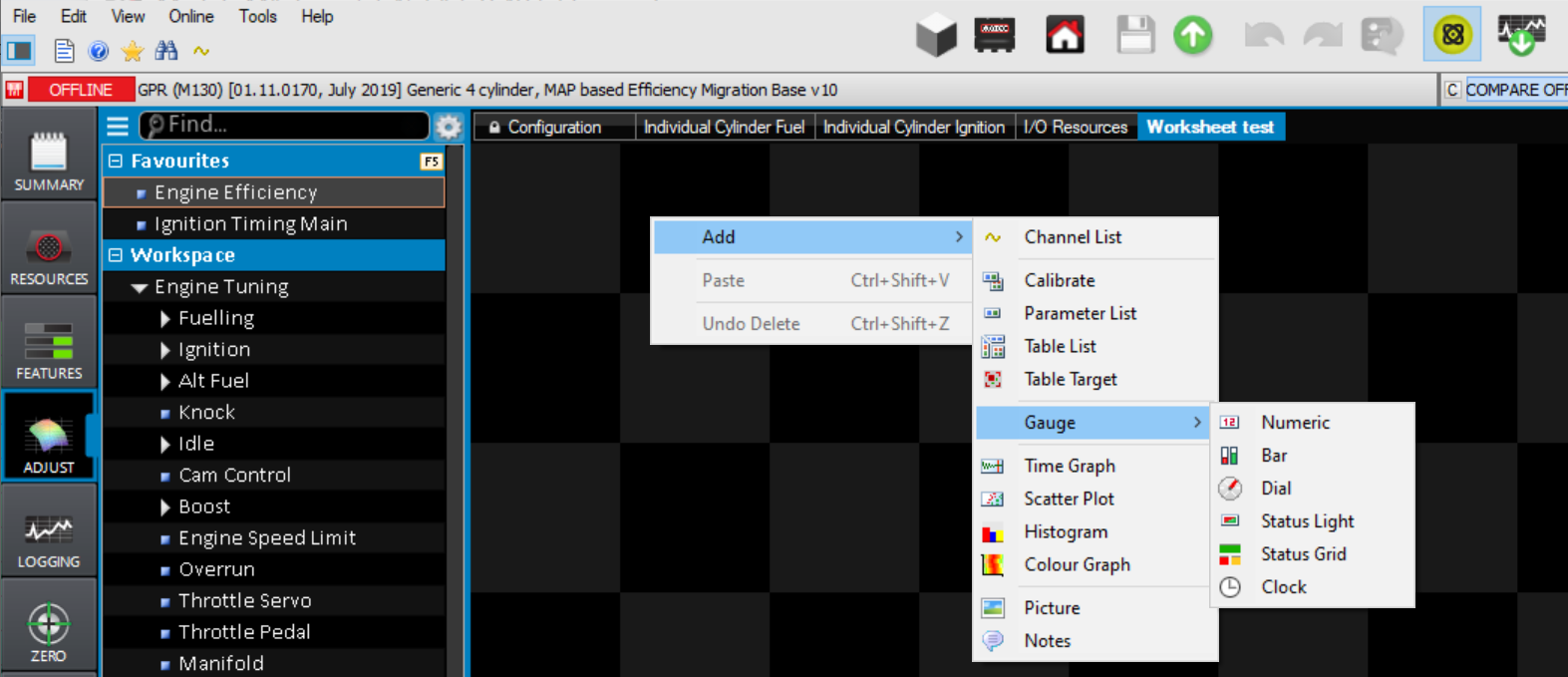

To configure the new Worksheet right click anywhere on the background of the Worksheet, choose a component from the dialog.

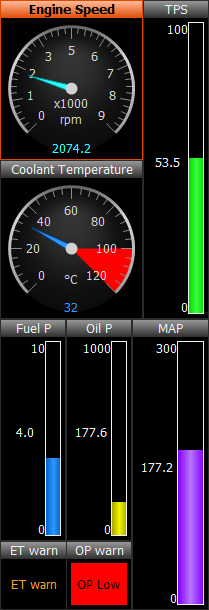

The component types that are available include: Calibrate Table Target Channel List Time Graph Scatter Plot Histogram Colour Graph Notes Gauges	Examples of gauge type components:
