Logging Statistics

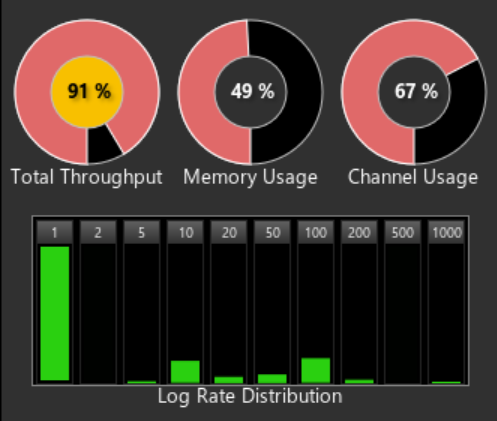

Use the statistics to refine the Logging System setup, adjust the logging rates and amount of logged items based on the graphs shown.

  • Total Throughput the total amount of data being saved into the logging memory.
  • Memory Usage the amount of memory assigned to each Logging System, use the Reserve Memory switch to adjust.
  • Channel Usage shows the percentage of the Packages available channel used.
  • Log Rate Distribution
    • Hover the cursor over a column to see the amount of channels assigned to that logging rate.
    • Click on a column to filter the Logged Items section to show only the channels logged at that rate.
