Wiring

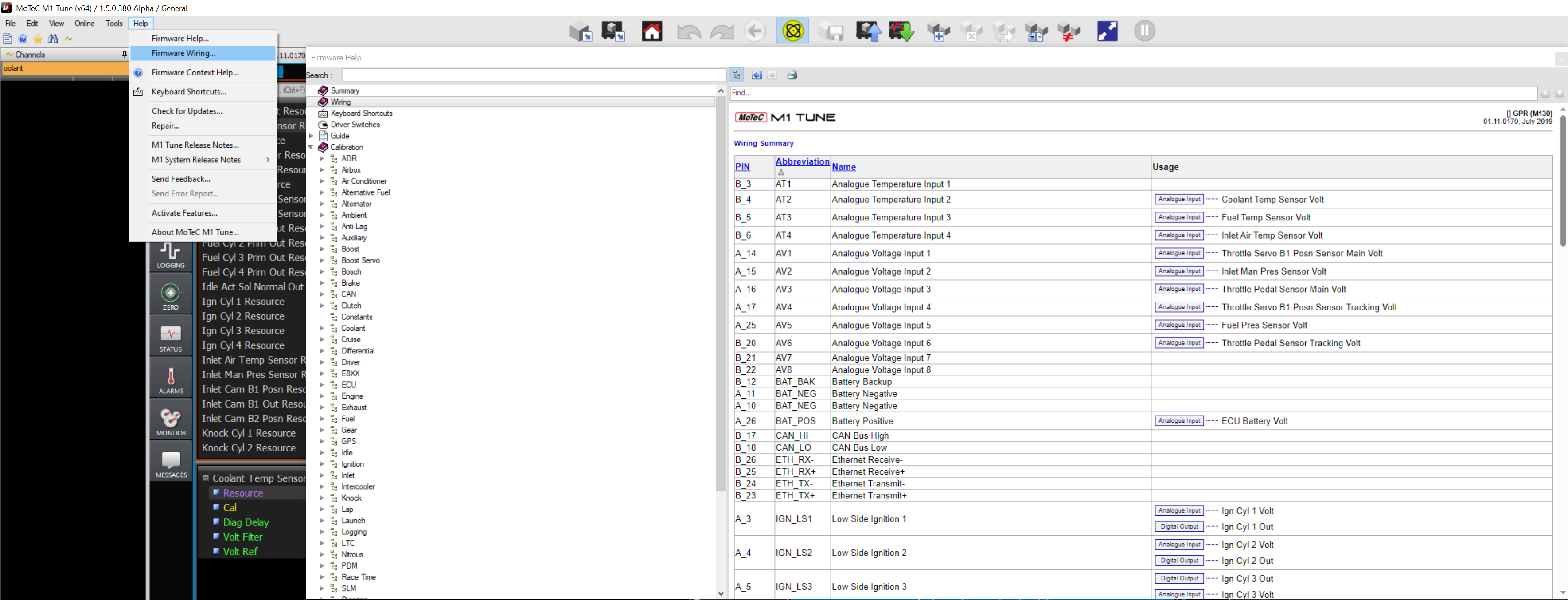

The M1 Wiring Summary shows the pin number assigned for each input and output, along with its abbreviation, name and usage. This list can be printed for reference.
Note:
- Wiring summaries seen in Packages before user resource configuration, should be considered as examples only.
- Unused inputs are shown without any information in the Usage column.
Select
